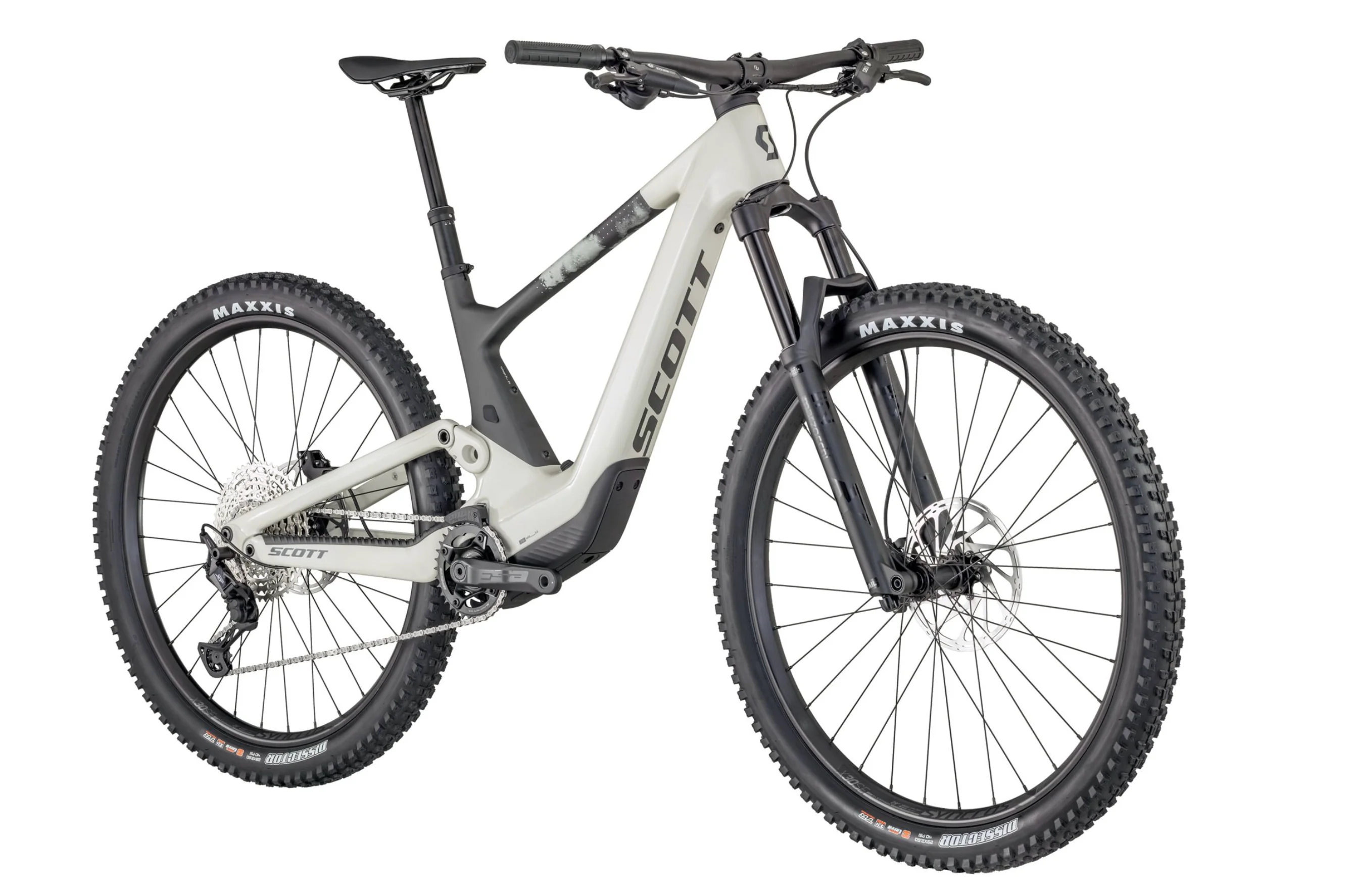

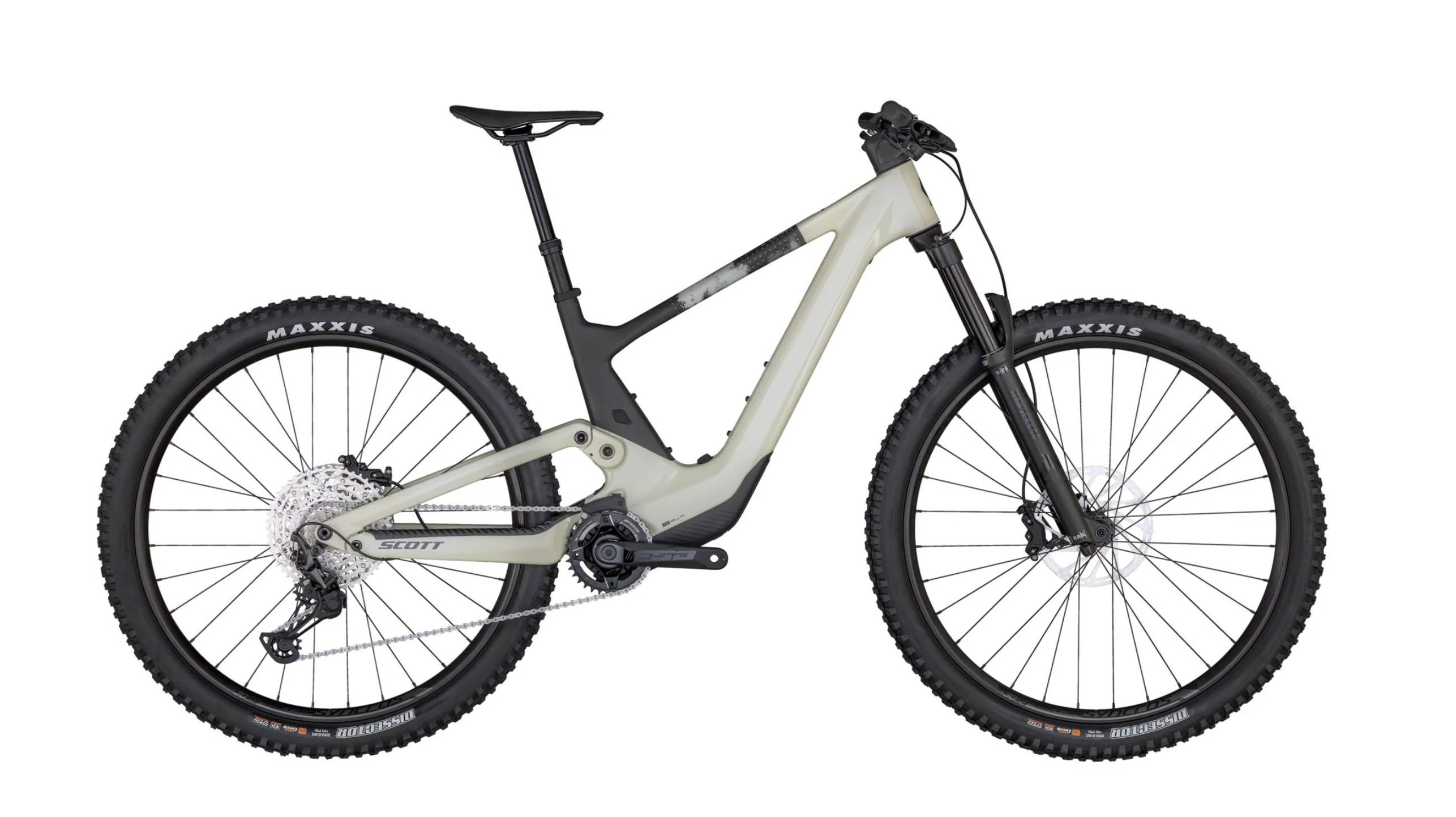

Scott Voltage eRide 920 Electric Full Suspension Mountain Bike

Imagine the giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.

Scott Voltage eRide 920 Electric Full Suspension Mountain Bike SPECS:
Frame: Carbon HMF Integrated Suspension Technology / Virtual 4 Link kinematic / Adjustable head angle / Syncros Cable Integration System / TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline / Range Extender Ready
Travel: Front: 150mm / Rear: 155mm
Fork: Marzocchi Z2 Air Rail 3 modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 150mm travel
Rear Shock: FOX Float Custom EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 155mm / T185X55mm

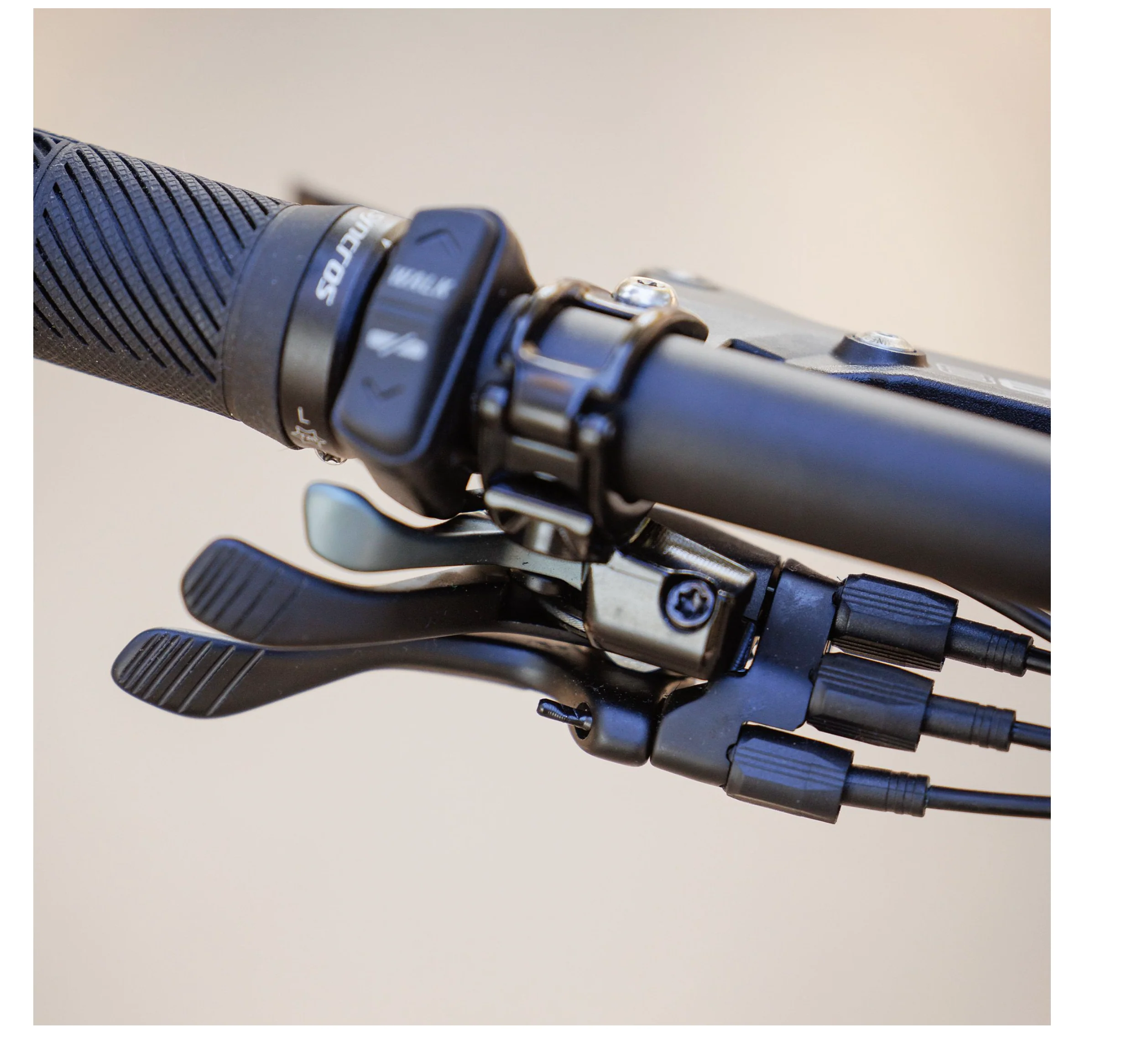

Remote System: SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes
Drive Unit TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery: TQ Internal 360Wh
Display: TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app
Charger: TQ 100-240V-4A
Rear Derailleur: Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed
Shifters: Shimano Deore SL-M6100-IR / Rapidfire Plus I-spec EV clamp
Crankset: FSA Alloy crankset / 175mm / 34T
Chainguide: e*thirteen / e*spec Slider
Chainring: Scott custom spider / FSA 12Speed 34T chainring
Chain: Shimano CN-M6100
Cassette: Shimano CS-M6100 / 10-51 T
Brakes: SRAM DB8 4 Piston Disc
Rotor: SRAM Centerline CL Rotors F&R 200mm
Handlebar: Syncros Hixon 2.0 Alloy 6061 D.B. 12mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips
H'stem: Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost: Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm / S size 140mm / M size 180mm / L & XL size 210mm
Seat: Syncros Tofino 1.5 Regular
Headset: Syncros - Acros Angle adjust & Cable Routing HS System / Stainless / +-0.6° head angle adjustment / ZS56/28.6 – ZS56/40 MTB
Hub (Front): Formula CL-811 / 15x110mm
Hub (Rear): Formula CL-148M / 12x148mm
Spokes: Stainless Black 15G / 1.8mm
Rims: Syncros X-30S / 32H / 32mm / Sleeve Joint Tubeless ready
Front Tire: Maxxis Dissector / 29x2.6" / 60TPI Wire Bead EXO Dual
Rear Tire: Maxxis Dissector / 29x2.6" / 60TPI Wire Bead EXO Dual
Approx weights in KG: 19.3 (with tubes)
Approx weights in LBS: 42.55(with tubes)
Max. System Weight: 128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
